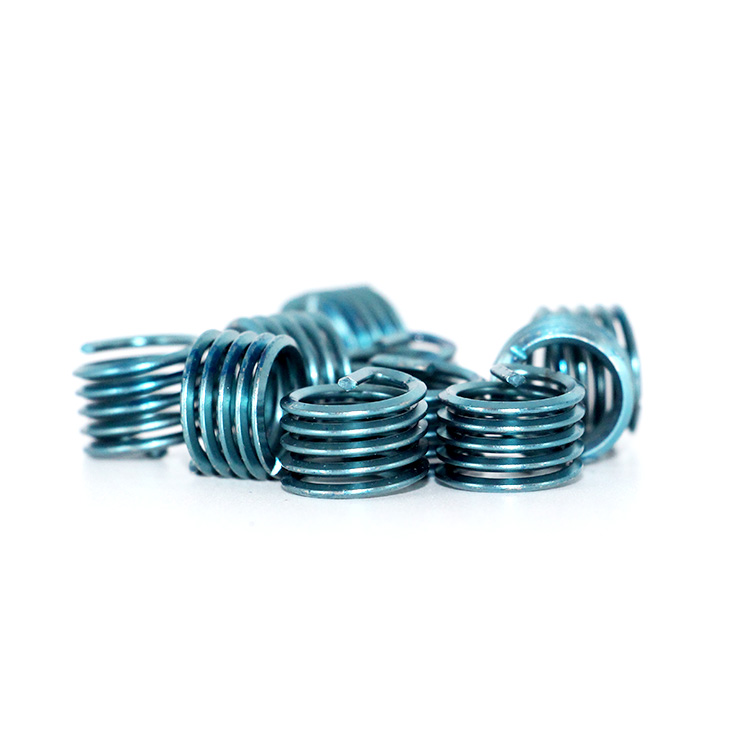

DIN8140 Stainless Steel Wire Thread Insert Concrete Insert Color Thread Insert Coils
Information
Thread insert is thread reinforcement and repair.
Threads are reinforced whenever low-strength materials (e.g. aluminium, aluminium-magnesium alloys and fibrereinforced plastics) are used.
Thread inserts produce high-strength, wear- and heat-resistant threads of highest precision.
The nut thread is wear resistant even in cases of frequent use.
Category
Free-Running tanged screw thread inserts are greater in diameter than the tapped hole into which they are installed. In the assembly operation, the torque applied to the tang reduces the diameter of the leading coil and permits it to enter the tapped thread. When the torque or rotation is stopped, the coils expand with a spring-like action, anchoring the insert permanently in place against the tapped hole.
Screw-Locking tanged screw thread inserts provide an exclusive, resilient internal locking thread that grips the bolt and prevents it from loosening under vibration or impact. Screw-lock inserts permit repeated assembly and disassembly yet will not relax their grip on the screw even in tough metals such as cast iron, alloy steel, titanium, etc.
Paramter
| Type: | Free Running, Screw Lock |
| Finish | Natural colour, Green, Red, Blue |
| Application | Light alloy, heavy industry, medical treatment, foundry industry, others |
| Brand Name | AVIC-Flight |
| Standard | DIN8140,MS21209 |
| Material | 304 Stainless steel 1.4301, 316 Stainless steel 1.4401, Inconel X750, Brass, Other |
| Installation | Direct installation |
| Name | Thread Inserts |
| Measurement system | Metric, Imperial (Inch) |
| Place of Origin | China |
| Model Number | FRM1.6-M56, SLM1.6-M56, other |
| Item name | Stainless steel Thread Inserts |
| Thread | ISO Metric, Unified, Whitworth |
| Internal Thread Size | M1.6-M56 |
Application
These inserts from thread insert are the original coiled insert and have an extensive background of tension, torque, shear, vibration, and fatigue tests conducted by leading companies as well as the U.S. Military.
FAQ
Q: Are you a factory or trading company?
A: Our factory has been professionally producing fasteners for 20 years
Q: How does your company and factory do regarding quality control?
A: Quality is top priority.
Q: When will you make the delivery?
A: We can make the delivery within 15-20 working days according to the quantity of your order.
Q: Do you have a price list?I need your price list of all your products.
A: We do not have a price list for all our products. Because there are too many items to cover all prices on one list. And prices are always changing since the producing cost changes. If you want to check any price of our product, please contact us freely. We’ll offer you soon!
